Features
- 316 Stainless Steel case
- 316 Stainless Steel hardware
- ProfiDrum Control Box
The ProfiDrum Stainless series is fully developed and constructed in Stainless Steel 316, for both static and moving parts. Inlets and outlets are sufficiently dimensioned to top your desired flow. The filters are covered with industrial filter panels with a woven stainless steel mesh of 70 microns. On request, different mesh sizes are certainly possible as well as nylon or polyester mesh.
The ProfiDrum Stainless-series includes a control box and high-pressure pump for an effective and efficient cleaning cycle.
ProfiDrum is a company that is focused on the development and production of innovative products in the field of water purification. Our systems are designed for water companies, fish farms, zoos and pond hobbyists that have high requirements for water quality. The concept of our filters ensures superb quality and sublime disposal of solids and dissolved particles by means of techniques that originate from water treatment.
ProfiDrum is a specialist in designing and building professional filtration systems based on Rotary Drum Filters (RDF’s), optionally combined with biological filtration solutions.
Proven and True Reliability
ProfiDrum is trusted by universities, aquaculture facilities, aquariums, zoos, professional dealers and hobbyists worldwide to provide reliable filtration solutions for maintaining pristine aquatic conditions.
High Flow rates
ProfiDrum RDF’s can filter up to 250000+ liters per hour. With the standard Stainless Steel mesh screen, waste particles down to 70 microns in size are filtered. Custom screen mesh sizes from 40 to 300 microns are available. The ProfiDrum Control Box activates a cleaning cycle to maintain an optimal flow rate when enough waste accumulates in the mesh screen.
Stainless Steel internals
316 Stainless Steel internal hardware is standard on all ProfiDrum models for performance and durability.
No compromises, only the best material are good enough for your solution and our products.
Automated cleaning
The ProfiDrum Controlbox was designed from the ground up with reliability in mind. Utilizing relay logic, the ControlBox keeps the ProfiDrum running 24/7. The ProfiDrum Controlbox handles the cleaning and operation of the ProfiDrum. Input from the sensors lets the ControlBox know when it’s time for a screen cleaning.
Rotary Drum Filters (drumfilters) remove solid waste from water using a fine mesh screen. The fine mesh screen traps waste particles, while allowing water to flow through. Sensors tell a connected control box when it’s time to rotate and clean the filter. Fully automated, no hands dirty!
During the cleaning cycle, the control box rotates the drum and activates the high pressure spray bar. The spray bar removes the trapped waste from the fine mesh screen and directs it into the stainless steel waste tray.

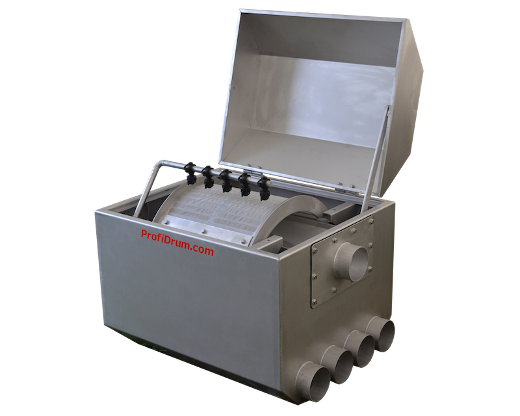

ProfiDrum Stainless 55
Characteristics:
Flow: 35.000 l/h
Inlet: 4 x 110 mm
Outlet: 3 x 110 mm
Waterlevel: 54 cm
L x B x H: 87 x 65 x 65 cm
Related Products
The EVO 30 Watt Ultraviolet Clarifier is ideal for keeping your pond clear of green water.
In stock
8watt 12inch G5 ,Average Rated Life 5000hrs, Slimline Shape, White Colour 35, Halophosphate CRI 51-58.
In stock
The range of K1 Micro Bead filtration systems are pressurised filter systems that deliver incredible levels of filtration for ponds.
Available on backorder
Nexus Automatic System for Pump Fed Set Up is a fully automated cleaning cycle.
Out of stock
K1 Micro Bead filtration systems are a range of pressurised filtration systems that deliver incredible levels of filtration for ponds.
Available on backorder

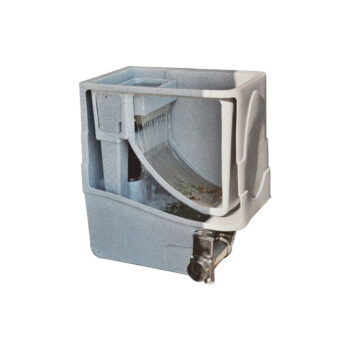

The Cetus Sieve is a sieve design pre-filter for bacterial filters such as K1 Pressure Bead Filter,or the Nexus Eazy-Easy Koi Filter.
Only 2 left in stock
EVO 25W UV design of UVs optimises flow rates and improves energy efficiency, with the sole focus to deliver optimum performance at all times to clear green water in ponds which is caused by single celled green algae.
Only 1 left in stock
Filter nylon wool with medium coarse structure, for optimum water permeability and a long lifetime.
Out of stock
The EvoUV deliver a more efficient and more economical performance than before thanks to their new design.
Out of stock
Nexus Automatic System for Gravity Set Up 300 Body is a fully automated cleaning cycle on their multi award winning Nexus filtration systems.
Only 1 left in stock (can be backordered)
T5 produces even light with nice fluorescence and the high output live corals and plants demand.
In stock

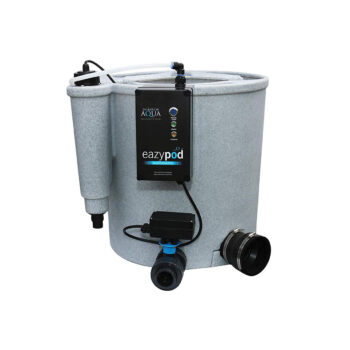

The EazyPod utilises 18 litres of static K1 Micro, which provides enhanced biological benefits, even when using the EazyPod solely as a mechanical waste filter.
